Multiaxis Toolpaths - Disk 1 For  Mastercam  X5

X5_MAxis_D1_CD_Md

Did you know you can do 4th axis contouring and Indexing with Mastercam  Mill Level 1 ?  Most people don’t. This CD will cover how to get the most of your 4th axis vertical or horizontal mill. Disk 1 of a 2 CD set. These concepts are the foundation for learning the more advanced 4th axis and 5th axis programming techniques in Disk 2.     Get Both CD’s and Save 10%

No Internet Connection Required. No Monthly Subscription. The CD Never Expires. Watch These Lessons Any Time That’s Convenient For You.

Qty              $175

4th Axis Functions Covered.

  • Rotary Wrap Theory
  • Rotary Wrap Contour & Drill
  • Rotary Wrap 3D Pocketing
  • Introduction To Planes
  • Simple Rotary Indexing
  • Dynamic Plane Creation
  • Multi Plane Indexing
  • Copy Operations Between Planes
  • Creating a Custom Thread Mill
  • OD Thread Milling
  • Toolpath Optimization
  • Rotary Slotting
  • Single Part Indexing
  • Multipart Indexing
  • Vertical & Horizontal Examples
  • Roll Die C-Hook
  • Rotary Multiaxis Axial Toolpath
  • Rotary Multiaxis Radial Toolpath
  • Rotary Tilt Control (Lead/Lag)
  • Backplot & Verify Options
  • Machine Simulation

Learn how to take a 2D flat drawing and create a 3D Rotary Die part like this.

Creating planes is a snap with the Dynamic Planes function. Machine Pockets, Contours & Drilled holes on multiple faces. Learn how to copy operations and redefine the working planes. Then see it all in Machine Simulation.

Step by Step Training.  Guiding you thru every lesson.
        60 Lessons.
                      11 Different Parts.
                                       5 - 1/2 Hours of Video.

Use the Feature Based Machining (FBM) Drill functions to automatically Center Drill, Drill & Counter Bore the the holes in these part examples. Learn how Plane Transformations can create tollpaths for multiple parts in just seconds.

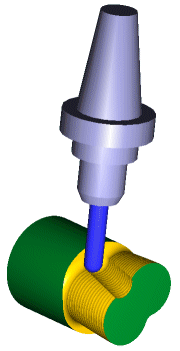

Learn about fixtures and how to view the fixtured part in Machine Simulation. See The Simulation of Indexing and Rotary contouring.

AX_Port-04_sm

Personal, Professional Training
Anytime You Want It.

Qty              $175

Need 5 Axis Training Too ?     Dont forget to add Disk 2
Buy Both CD’s and get 10% off list price

Click The Disk For More Information On Disk 2.

Click for more info on Disk 2

No Internet Connection Required. No Monthly Subscription. The CD Never Expires. Watch These Lessons Any Time That’s Convenient For You.

This CD Rom runs in 1024 x 768 resolution. Easy to run on any PC. Contains 5-1/2 hours of video with audio narration.  A sound card & Speakers are required.
